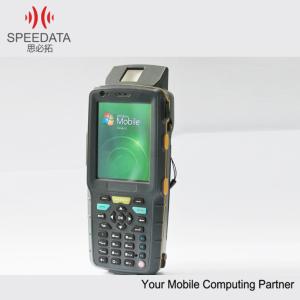

IP65 Handheld Parking Ticket Machine Customized Portable Data Terminals
RFID Fingerprint Readers
Quick Detail:
Handheld RFID Reader
Factory,R&D
Android 2.3 or WM 6.1/6.5 OS
LF/HF/UHF RFID Reader
Barcode scanner option ,SDK file
Speedata MT35 Series:
1. 3.5 inch Transflective screen VGA TFT LCD.
2. Superior scalability: Maximum can support 4 extensions. For example: MT35-B2-SE45SR-UHF-R6-D6T-E27 (1D & 2D barcode,UHF RFID, HF RFID, DGPS,Printer) ,Flexible customized according to clients' requirements .
3. customization: Customers can customize their own modules.
4. Protection class: IP65.
5. Android/Win Mobile/Win CE operationg system (optional)
Specifications:
|
Core board |
|
WM6.1/6.5 OS |
option1 |
Marvell PXA310(806MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS, EDGE/WCDMA 2100MHz HSDPA 3.6Mbps |
|
WM6.1/6.5 OS |
option2 |
Marvell PXA310(806MHz)+qualcomm EVDO (800MHz, CDMA 1X, EVDO) |
|
android 2.3 OS |
YES |
Marvell PXA910(806MHZ) +GSM Quad-band 850/900/1800/1900MHz, GPRS,
EDGE/WCDMA900/1700/2100MHz HSDPA 3.6Mbps
|
|
Memory |
Flash ROM |
512MB |
|
RAM |
512MB DDR |
|
Extend Slot |
Micro SD 16G (SDHC) |
Mother board:
|
Display |
3.5inch TFT LCD display (320 x 240)
65k color/touch panel/ Transflective screen
|
|
GPS Solution |
Ublox The 5th Generation |
|
Wire Transmission |
USB 2.0 Full Speed, charging/sync |
|
Bluetooth |
YES |
|
WiFi |
WiFi (802.11 b/g) |
|
Function Modules |
Thermal Printer |
printer(paper suplied: 57mm wide 30mm Φ) |
|
PSAM |
PSAM ISO 7816 class A,B |
|
Fingerprint Reader |
SM-621B |
|
Far Infrared Meter Reading |
IEC62056-21(IEC1107) |
|
Wireless meter reading |
Wireless meter reading module
(418--455MHZ or 470--510MHZ )
|
|
temperature humidity sensor |
|
Barcode Scanner |
option |
1D/2D barcode scanner |
|
RFID |
option |
LF/HF/UHF RFID |
|
DGPS |
option |
UBLOX LEA-6T/6D |
|
C-MOS imager |
5M AF |
|
External Interface |
USB HOST/RS232/SPI/IIC |
|
Protection class |
IP65 |
|
Drop resistance level |
1.5m |
Standard Packaging:
Main Unit*1pc, Charger*1pc, USB Cable*1pc, battery*1pc, Case*1pc, Strap*1pc
Competitive Advantages :
1. We have our own manufacture factory in Beijing ;
2. Own r&d team and technical personnel;
3. Scientific management, advanced production equipment;
4. Excellent after-sales service and technical support;
